Removing the hard drive from a Samsung laptop can be necessary for various reasons, including upgrading to a larger drive, replacing a faulty one, or retrieving data. This process, while straightforward, requires careful attention to detail to avoid damaging any components.
Preparation
Gather Your Tools
Screwdrivers: Typically, a Phillips-head screwdriver and possibly a flathead screwdriver.
Anti-static wrist strap: To prevent static damage to internal components.
Plastic pry tools: Useful for safely opening the laptop casing.
Container for screws: To keep track of all screws removed during the process.
Backup Your Data
Before proceeding, ensure all important data is backed up. You can use an external hard drive or cloud storage for this purpose.
Power Down and Unplug
Shut down the laptop completely and unplug it from any power source. Remove any connected peripherals.
Step-by-Step Instructions
Step 1: Remove the Battery
Locate the Battery Release Latches: Depending on your model, the battery may have latches that need to be slid or pressed.
Remove the Battery: Carefully slide or press the latches to release the battery, then lift it out.
Step 2: Access the Hard Drive Compartment
Identify the Hard Drive Cover: Most Samsung laptops have a dedicated panel for the hard drive, usually located on the underside of the laptop.
Unscrew the Cover: Using your screwdriver, remove the screws securing the hard drive cover. Keep these screws safe.
Step 3: Remove the Hard Drive
Locate the Hard Drive: After removing the cover, you will see the hard drive.
Disconnect the Hard Drive Connector: Gently pull the hard drive connector away from the motherboard. Be careful not to apply excessive force.
Unscrew the Hard Drive Bracket (if applicable): Some models have screws securing the hard drive in place. Remove these screws.

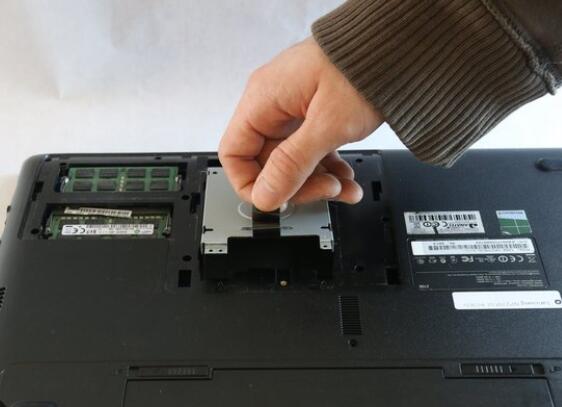

Slide the Hard Drive Out: Once the screws are removed, gently slide the hard drive out of its bay.
Step 4: Handle the Hard Drive
Inspect the Drive: Check for any signs of damage or wear.
Transfer Data (if necessary): If you plan to use the drive in another system, connect it to a suitable enclosure or docking station to retrieve your data.
Step 5: Install a New Hard Drive (Optional)
Insert the New Hard Drive: Slide the new hard drive into the bay, ensuring it fits securely.
Reconnect the Connector: Gently push the connector back into place.
Reattach the Hard Drive Bracket (if applicable): Secure the hard drive with the screws you previously removed.
Step 6: Reassemble the Laptop
Replace the Hard Drive Cover: Position the cover back onto the laptop and secure it with screws.
Reinsert the Battery: Align the battery with its compartment and slide it back into place.
Plug in and Power On: Reconnect the power cable and turn on the laptop to check if the new drive is recognized.
Tips for Safe Handling
Static Electricity Precautions: Always use an anti-static wrist strap to prevent damage from static discharge.
Work in a Clean Environment: Keep your workspace organized and free of dust to avoid contamination.
Handle Components with Care: Avoid touching the circuit board or connectors of the hard drive.
Troubleshooting Common Issues
Drive Not Recognized: If the new hard drive is not detected, ensure it’s seated correctly and the connector is secure.
Screws Stuck: If screws are stuck, use a rubber band for extra grip or try applying a little penetrating oil.
Data Recovery Needs: If data recovery is needed from the old drive, consider professional services if the drive is severely damaged.
Removing and replacing the hard drive in a Samsung laptop can seem daunting, but with the right tools and a methodical approach, it can be accomplished successfully. Always prioritize safety and data protection throughout the process. With these steps, you can tackle this task confidently and efficiently, ensuring your laptop continues to perform at its best.
