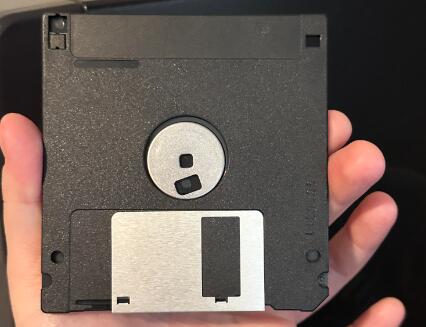

File recovery floppy disk​

Yet, for many archivists, researchers, legacy system users, and nostalgia-driven hobbyists, these thin, magnetic storage devices still carry important or sentimental data. Whether it’s old academic records, vintage software, or family photos stored on 3.5-inch or 5.25-inch floppies, data recovery from these disks can be challenging but not impossible.

Floppy disks were once the cornerstone of personal and business computing. Introduced in the 1970s, they served as a portable, cost-effective method to store and transfer data. Over the decades, formats evolved:

8-inch floppy disks (1971): Rare today but historically significant.

5.25-inch floppy disks (late 1970s to early 1990s): Used in early IBM PCs and Apple II systems.

3.5-inch floppy disks (introduced in the 1980s): The most familiar format, offering up to 1.44MB of storage.

While limited in capacity by modern standards, these disks were once cutting-edge. Today, their magnetic surfaces degrade over time, making recovery both an art and a science.

Why You Might Need Floppy Disk Recovery

Lost or Archived Data

Many organizations still have backup files, tax documents, or proprietary software on floppy disks.

Legal or Government Records

Older governmental systems used floppies for sensitive data, some of which may still need retrieval.

Vintage Gaming and Software Preservation

Enthusiasts of classic software or games often recover and preserve floppies to maintain access to early digital culture.

Personal Archives

Old documents, school essays, or even family photos may reside on floppies forgotten in drawers or boxes.

Challenges of Floppy Disk Recovery

Physical Degradation

The magnetic surface can deteriorate, especially if exposed to heat, humidity, or dust.

Obsolete Hardware

Modern computers no longer include floppy drives, and USB drives for floppies are increasingly rare.

Incompatible File Formats

Even if you recover the file, it may be stored in a long-defunct format (e.g., WordPerfect, Lotus 1-2-3).

Mechanical Failures

Bent metal shutters or warped plastic cases can prevent proper reading.

Driver and OS Support

Legacy operating systems and file systems may require emulators or virtual machines for access.

Step-by-Step Process for Floppy Disk File Recovery

Step 1: Assess the Condition of the Disk

Visual Inspection: Check for physical damage—cracks, mold, rust on the metal shutter, or warping.

Smell Test: A musty smell could indicate mold or corrosion.

Gently Shake: Listen for loose parts or debris inside.

If there are any severe defects, professional restoration may be required before attempting digital recovery.

Step 2: Obtain Compatible Hardware

To read a floppy disk, you’ll need:

Internal Floppy Drive (for desktops): Connects via floppy ribbon cable and power supply.

External USB Floppy Drive: Easier for laptops and modern systems but may not support older or non-standard disk formats.

Vintage Computers: An old IBM or Macintosh with built-in drives may be the most compatible option.

If you’re using vintage hardware, make sure the system still boots and has the necessary operating system and software.

Step 3: Choose the Right Software

Panda Assistant

Despite being considered obsolete by modern standards, floppy disks are still used in certain legacy systems and archival storage scenarios. Whether you’re dealing with old business files, family documents, or software backups, recovering data from a damaged or unreadable floppy disk can be a challenging task. Fortunately, Panda Assistant includes specialized support for recovering files from these aging storage devices.

Panda Assistant’s data recovery engine is designed to handle a wide range of storage media, including floppy disks formatted in FAT12 one of the most common file systems used by 3.5″ and 5.25″ floppy disks. The software can scan these disks for deleted or corrupted files, rebuild damaged file tables, and extract retrievable content with minimal user input.

One key advantage of using Panda Assistant for floppy disk recovery is its lightweight system requirements. It runs efficiently on older machines, which is often necessary when dealing with floppy drive hardware. The interface allows users to perform quick scans, recover individual files, and even preview contents before restoration, making the process intuitive even for those unfamiliar with data recovery.

Step 4: Create a Disk Image (IMG File)

Before attempting file recovery, it’s wise to make an image of the entire disk. This preserves the data even if the floppy fails mid-process.

Use tools like:

WinImage (Windows)

dd or ddrescue (Linux)

Disk Copy (Mac)

Store the image file on a reliable medium such as an external SSD or cloud backup.

Step 5: Perform File Recovery

With a disk image ready, apply file recovery techniques:

Use PhotoRec to recover recognizable file types.

Use TestDisk to reconstruct file systems or boot sectors.

Open documents in LibreOffice or Microsoft Word for compatibility with older file types.

Use emulators like DOSBox for vintage software.

If you’re working with raw images or unfamiliar file types, software like HxD (hex editor) can help interpret or extract file headers manually.

Advanced Recovery Techniques

If the disk is severely damaged, consider:

Cleaning the Disk: Open the disk shell carefully and clean the magnetic disk with isopropyl alcohol and lint-free cloth.

Disk Spindle Swap: For damaged outer shells, move the magnetic disk into a working floppy case.

Flux-Level Imaging: Tools like the KryoFlux or SuperCard Pro read magnetic flux transitions to extract low-level data from failing or non-standard floppies.

These methods are risky and should be attempted only if you understand the mechanics of floppy disk drives.

Professional Floppy Disk Recovery Services

If the data is critical and DIY methods fail, consider professional recovery services:

Panda Assistant Data Recovery (select locations)

Gillware

RetroFloppy

FloppyDisk.com

These services offer cleanroom-level disassembly and can often retrieve data from disks deemed unreadable.

Post-Recovery: Preservation and Conversion

Once data is recovered, consider the following:

Convert File Formats: Open and resave files in modern formats like .docx or .pdf.

Metadata Preservation: Maintain original file timestamps and attributes when possible.

Catalog the Data: Organize recovered data by disk, project, or category.

Backup Everything: Store copies in the cloud, external SSD, or archival-quality DVDs.

Common Floppy Disk Recovery Scenarios

Scenario 1: Vintage College Thesis Recovery

Alex discovers their undergraduate thesis from 1993 stored on five 3.5” floppy disks. Using an external USB floppy drive, WinImage, and WordPerfect reader software, Alex successfully recovers the document and converts it into a modern DOCX format.

Scenario 2: Recovering DOS Game Files

Sam finds rare DOS games on 5.25” disks. They connect an old IBM PC with MS-DOS 6.22. copy the files to a CF-to-IDE adapter, and transfer the games to a modern PC via USB.

Scenario 3: Archival Recovery of Municipal Records

A local government office holds water meter records from the 1980s stored on floppy disks. A professional service uses flux imaging and forensic tools to extract and restore data into a database-friendly format.

Tips for Long-Term Preservation of Floppy Disk Data

Avoid Magnetic Fields: Keep disks away from speakers, microwaves, or electronics.

Store in Controlled Climate: Cool, dry, and dark environments are best.

Handle With Care: Always insert/remove floppies gently and avoid touching the magnetic surface.

Label Clearly: Use soft-tip pens, never ballpoint pens or adhesive stickers.

Digitize Immediately: Don’t wait for the disk to fail recover data as soon as possible.

Floppy Disk Emulation and Legacy Access

Emulators can revive floppy-only software:

DOSBox: Run DOS programs without native hardware.

SheepShaver: For classic Macintosh environments.

Floppy Image Mounting: Tools like Virtual Floppy Drive let you mount .IMG files as virtual floppies.

These methods help preserve vintage software in its original form without relying on physical media.

Floppy disks, though outdated, still hold vast repositories of information from the digital past. Recovering files from them is a rewarding challenge that bridges history with technology. Whether you’re a digital archivist, a curious retro computing fan, or someone trying to access forgotten family documents, this guide provides a clear and detailed roadmap to retrieving and preserving floppy-based data.
